Tungsten Vial Shield

Tungsten Vial Shield


Tungsten is a hard and rare metal that often exists in compound form and is a highly effective lead replacement shielding material. Nuclear Medicine Tungsten Vial Shields are often made of tungsten alloy materials, which have high density, good shielding effect (strong shielding performance for X-rays, gamma rays and beta rays), wear resistance, corrosion resistance, and oxidation resistance. Impact resistance, good processing performance, long service life and a series of excellent properties. Nuclear Medicine Tungsten Vial Shields are radiation-proof containers designed for storage and extraction of radioactive solutions. The capacity ranges from 10-20 ml. The shielding thickness, accessory design and size specifications can be customized. The working principle of Nuclear Medicine Tungsten Vial Shields is to first inject an appropriate dose of normal saline into it according to the number of patients, and then after leaving it for 24 hours, the liquid in the bottle will form the drug for injection, and finally extract it with a syringe.

Email: admin@cnrayshield.com

Product details

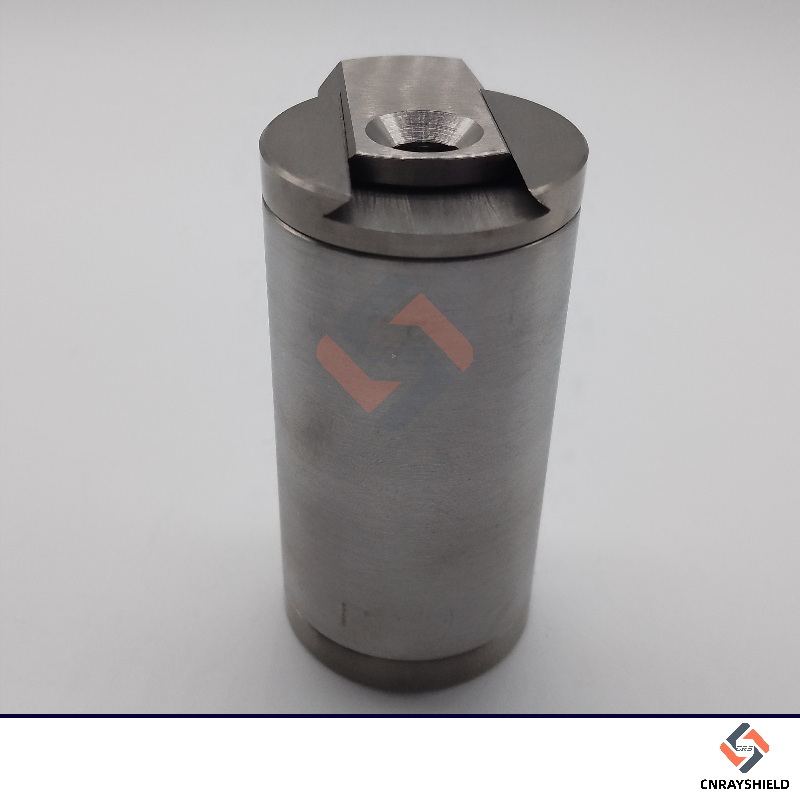

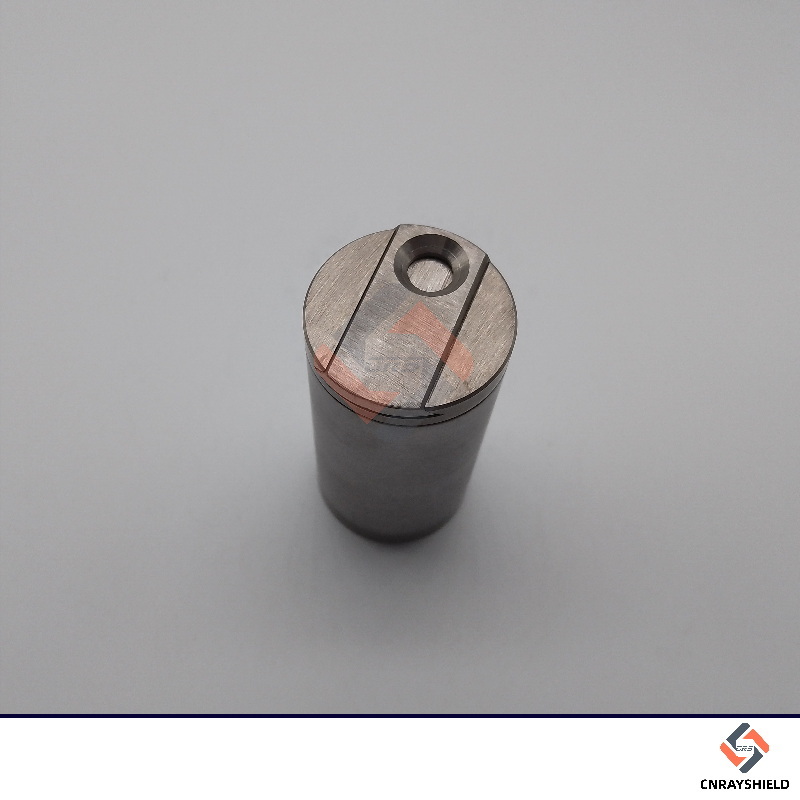

Tungsten Vial Shield

Type : TVS-602

Slide cap

Dimensions: 1.44″ dia x 2.8″ h (3.7 x 7 cm) –

I.D.: 1″ x 2.25″ (2.5 x 5.7 cm)

Lead Equivalency: .38″ (10mm)

Accommodates Vial Size: 5~10 ml



Type : TVS-604

Screw cap

Dimensions: OD46mm x 79mm H

ID : 25×52.7mm

Lead Equivalency: .38″ (10mm)



Tungsten(Wolfram) Vial Shield



Type : TVS-20mmT for I131 150mci

Screw cap

SN: TV-TC20

Dimensions: OD65mm x 95mm H

ID : 22×52.7mm for 10ml vial

Tungsten alloy thickness: 20mm

Lead Equivalency: 31mm

Weight: 5kgs



Product Parameters

Material Tungsten Alloy
Density 18.75g/cm3
Tungsten Thickness 2.5-6mm
Outside Dimensions 40mmx70mm
Inside Dimensions 20mmx50mm
Weight(lbs) 3,5,10,16
Surface Polishing
Delivery time 15-20 days
Standard ASTM,GB
Certification ISO 9001
