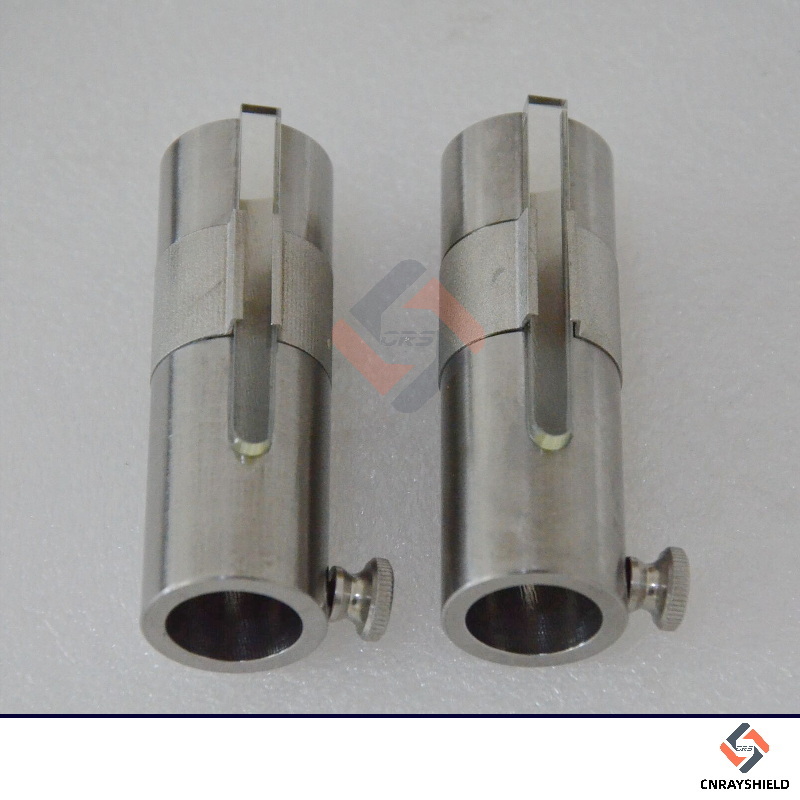

Tungsten Syringe Shield -Tc-99

Tungsten Syringe Shield -Tc-99


Screw-Lock Medical Syringe Shield is usually made of high-density and high-shielding tungsten alloy material, and the key point is that it is equipped with a screw lock for fixing the syringe. After the screw is tightened, it is safer than pressing the lock, reducing the risk of the syringe falling off after accidental touch. Each protective cover is equipped with a lead glass observation window, which makes it easier for medical staff to observe the drug content and improve the accuracy of injection. Screw-Lock Medical Syringe Shield is specially used to protect against harmful radiation emitted by isotopes used for imaging examinations in the field of nuclear medicine, and is suitable for a variety of syringes such as 1cc, 2cc, 5cc and 10cc.

Email: admin@cnrayshield.com

Product details

Tungsten Syringe Shield -Tc-99

Tungsten shielding

Lead glass window, easy to replace

Lightweight

Fits most disposable syringes

Type: TSST-S Series

The barrel of the shield is constructed of 2 mm thick tungsten

that will reduce radiation exposure from Tc-99mm

by more than 99% attenuation for Tc-99m

A stainless steel thumb screw holds syringes firmly in place.

Product Parameters

OD mm ID mm Length mm
1cc 15 8.8 70
3cc 18 12.1 58
5cc 19.6 14.6 68
10cc 26.1 19 80

Tungsten 2.5mm min / Lead glass 5mm
