Tungsten Syringe Shield -Press fit for PET

Tungsten Syringe Shield -Press fit for PET


In order to ensure the safety of the radiotherapy department, it is necessary to adopt professional anti-radiation equipment to protect the health of medical staff from the damage of high-energy rays. Medical Syringe Shields With Press Fit is a small protective device that doctors often use when injecting patients. It can hold syringes ranging from 5 ml to 20 ml. It is equipped with a high-visibility lead viewing window and a one-handed press latch that allows doctors to monitor fluid volume. To complete accurate dispensing and injection operations. The presence of Press Fit can prevent liquid leakage, improve the speed of processing, and increase the ease and convenience of use. Medical Syringe Shields With Press Fit is made of tungsten alloy material with high density and high environmental performance, which can absorb X-rays or gamma rays for medical personnel, and our company can accept customization in terms of size specifications and shield thickness.

Email: admin@cnrayshield.com

Product details

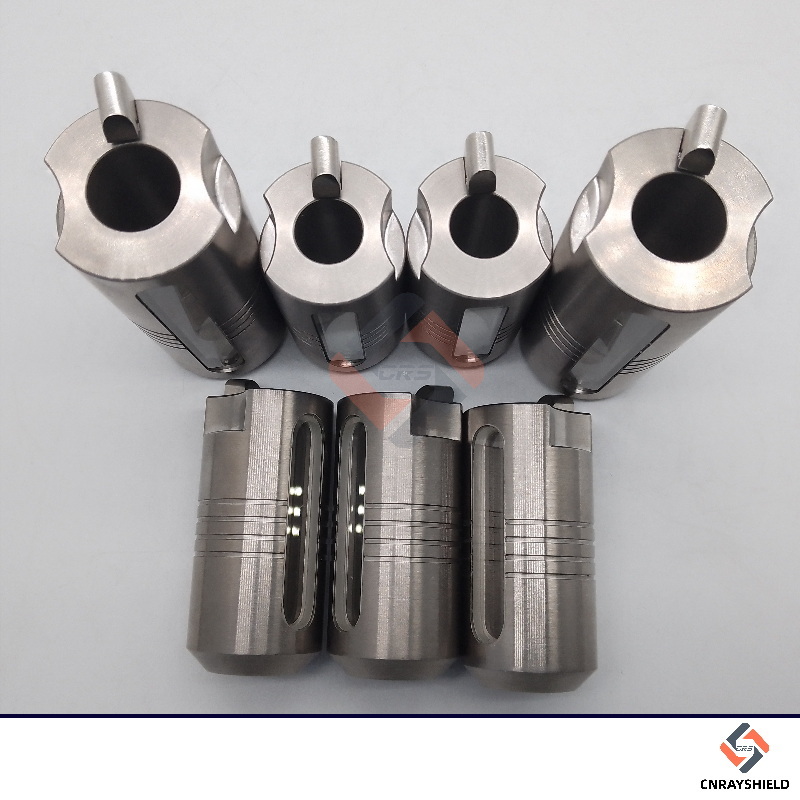

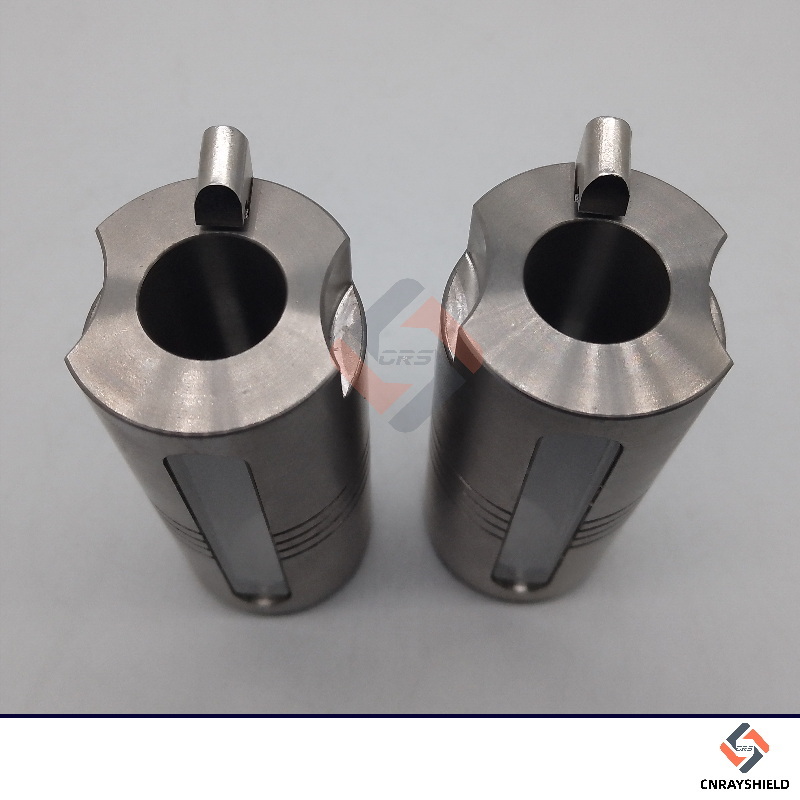

Tungsten Syringe Shield -Press fit for PET

Constructed of 9.5mm min thick tungsten, attenuates FDG F-18 by 90% at least

Available with or without a high density lead glass window

Fits most disposable syringes

Type: TSSL-PT Series

Product Parameters

PET Syringe Shields accommodate the standard sized

1ml, 3ml, 5ml and 10ml syringes.



PET OD mm ID mm Length mm
1cc 29 8.5 75
2~2.5cc 30 11 60
3cc 32 12 75
5cc 34 14.5 67
10cc 36 17 85

Tungsten 9.5mm min / Lead glass 7.5mm
