Tungsten Syringe Shield -PET

Tungsten Syringe Shield -PET


Custom made PETpig units, mid section is divided into an outer shell and a standard PET injection syringe shield.PET Syringe Shield reduces hand exposure from syringes containing 511 keV radionuclides FDG F-18. The barrel of the shield is constructed of .34" thick (9 mm) tungsten that attenuates FDG F-18 by 88%.PET Syringe Shields accommodate the standard sized 3 cc, 5 cc and 10 cc syringes. For Shipping Syringes With or Without Needles Attached,radionuclides such as FDG F-18. Syringes fit into the pig with or without an attached needle.

Email: admin@cnrayshield.com

Product details

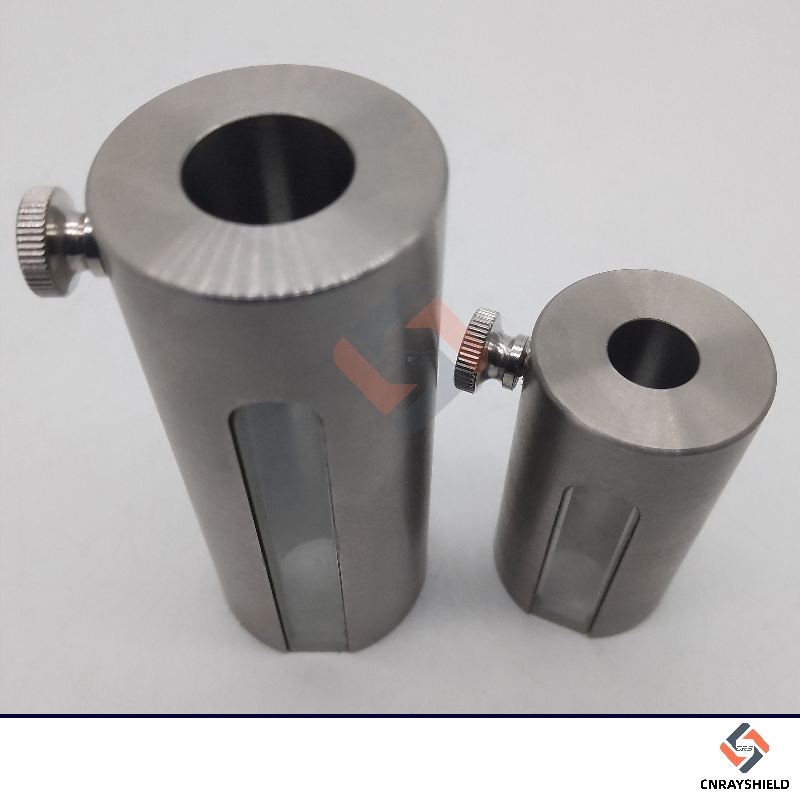

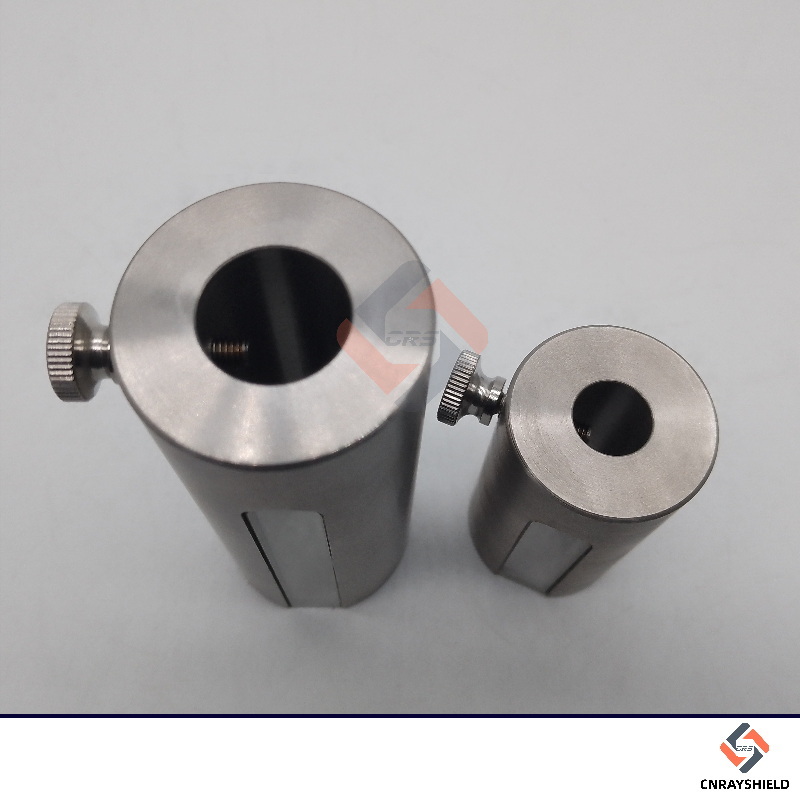

Tungsten Syringe Shield -PET

Constructed of 9.5mm min thick tungsten, attenuates FDG F-18 by 90% at least

Available with or without a high density lead glass window

Fits most disposable syringes

Easily sanitized with alcohol wipes

Type: Type: TSSP-Series

Product Parameters

A white reflective surface on the shield interior improves

viewing of the syringe’s markings and fluid content.

A thumbscrew holds syringes firmly in place.

PET Syringe Shields accommodate the standard sized

1ml, 3ml, 5ml and 10ml syringes.



PET OD mm ID mm Length mm
1cc 32 7 75
2~2.5cc 30 11 60
3cc 32 12 75
5cc 34 14.5 67
10cc 36 17 85



Tungsten 9.5mm min / Lead glass 7.5mm
