Tungsten PET Dispensing Container-TPDC-08

Tungsten PET Dispensing Container-TPDC-08

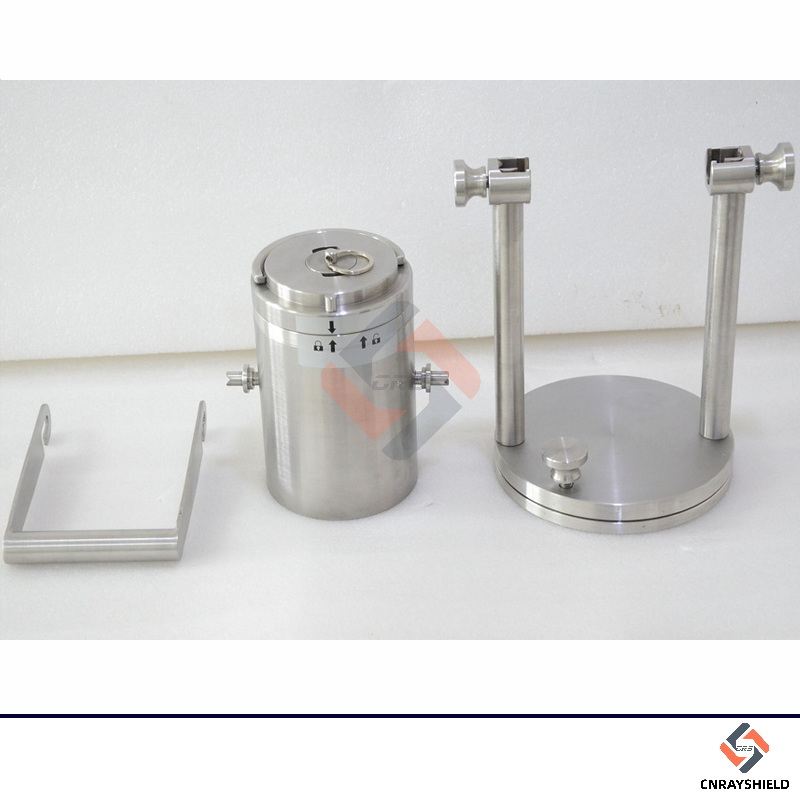

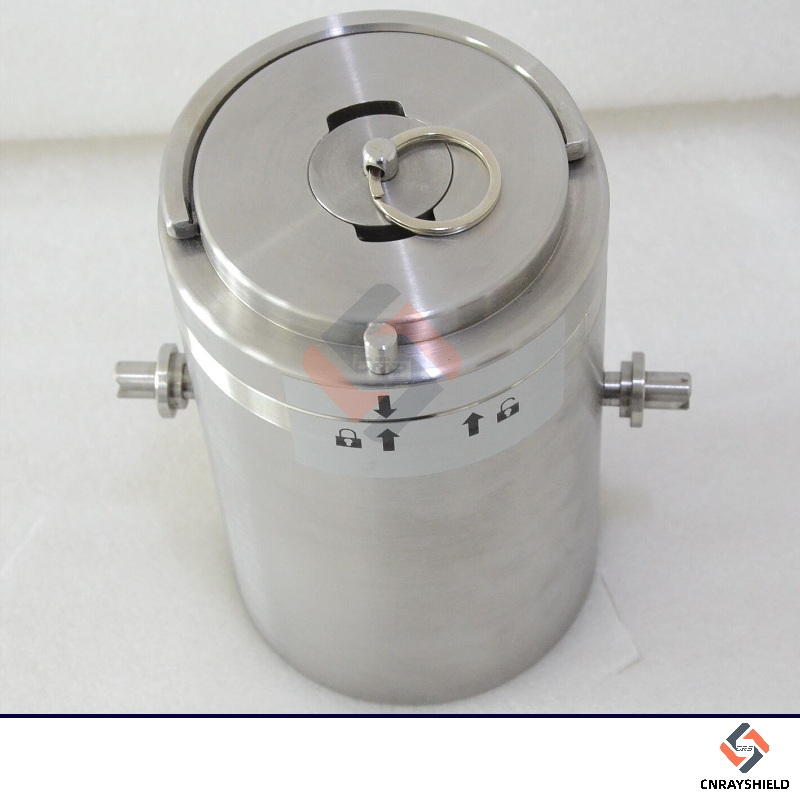

According to official regulations, all drug dispensing operations need to be performed in Fume Hoods. Tungsten Heavy Alloy Protective Turning Pots are a commonly used packaging container in fume hoods. It is generally made of tungsten alloy material with high shielding level. It can shield gamma rays, beta rays and X-rays very well, protecting the operator's physical safety. effect. Tungsten Heavy Alloy Protective Turning Pots mainly consist of two parts: the jar and the turning frame, which can be separated and combined at any time. The flip frame also includes a rotating disk and its fastening components and a fixed chassis, which can lock the lead cans during use to ensure stability and safety during the dispensing process. The main usage process of Tungsten Heavy Alloy Protective Turning Pots is: first put the can on the flip stand and rotate it to the appropriate angle, then insert the syringe into the can to extract the medicine according to the dose, and finally use a protective vial or syringe shield to inspect the packaged medicine.

Email: admin@cnrayshield.com

Product details

Tungsten PET Dispensing Container-TPDC-08

Tungsten shielding

F18 radionuclide.

Fits for vial

Type: TPDC-08

Weight: 25KG

Conatiner Weight: 17 kg

Pit dimensions (mm): 33 x 57 (Ø x h)

External dimensions (mm): 93 x 130 (Ø x h)

Shielding (Tungsten Thick) (mm): 30



Product Parameters

Grade WNiFe,WNiCu
Shielding Material Tungsten Alloy
Shielding Thickness 2-6mm
Density 16.85g/cm3-19.2g/cm3
Capacity 10ml-30ml
General High 280.5mm
Bottom Diameter 190mm
Pot Diameter 112.5mm
Pot High 140.5mm
Certification ISO 9001
