Nuclear Medicine Tungsten Protective Containers are high-density tungsten nickel-iron alloy materials made of high-density tungsten nickel-iron alloy materials after high temperature sintering, forging and polishing for shielding harmful rays, with the advantages of corrosion resistance, impact resistance, wear resistance, easy cleaning, long service life, high cost performance, etc. Nuclear Medicine Tungsten Protective Containers are designed to protect medical staff from gamma rays emitted by radioactive liquids (such as I131, FDG-F18) in the tank, and assume the role of safe storage and convenient transportation, especially better environmental protection and shielding level than lead tanks. If you need any protective equipment for use in the nuclear medicine department, please feel free to contact us by email.
Email: admin@cnrayshield.com

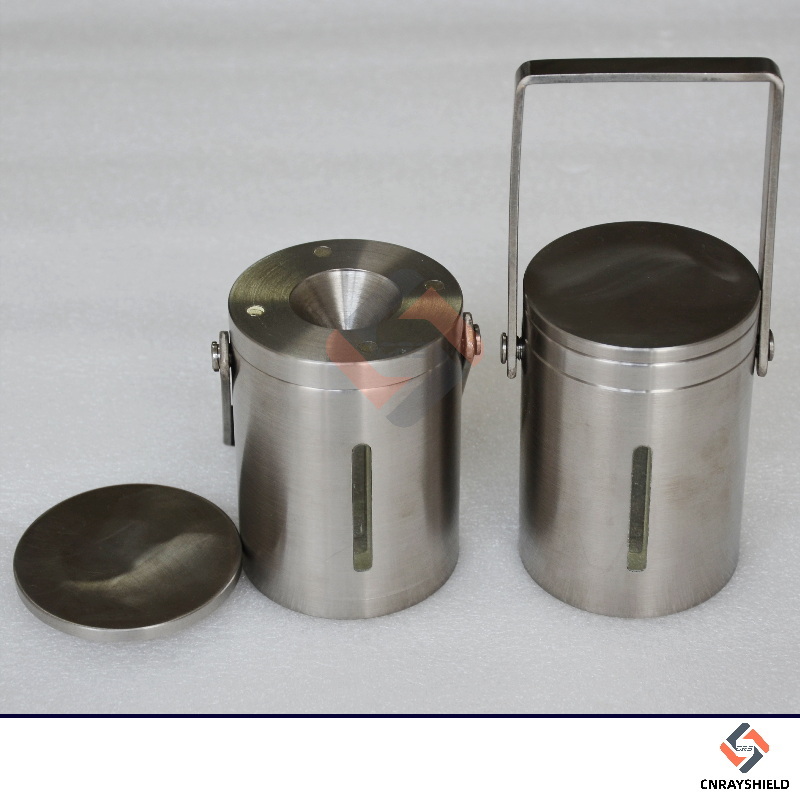

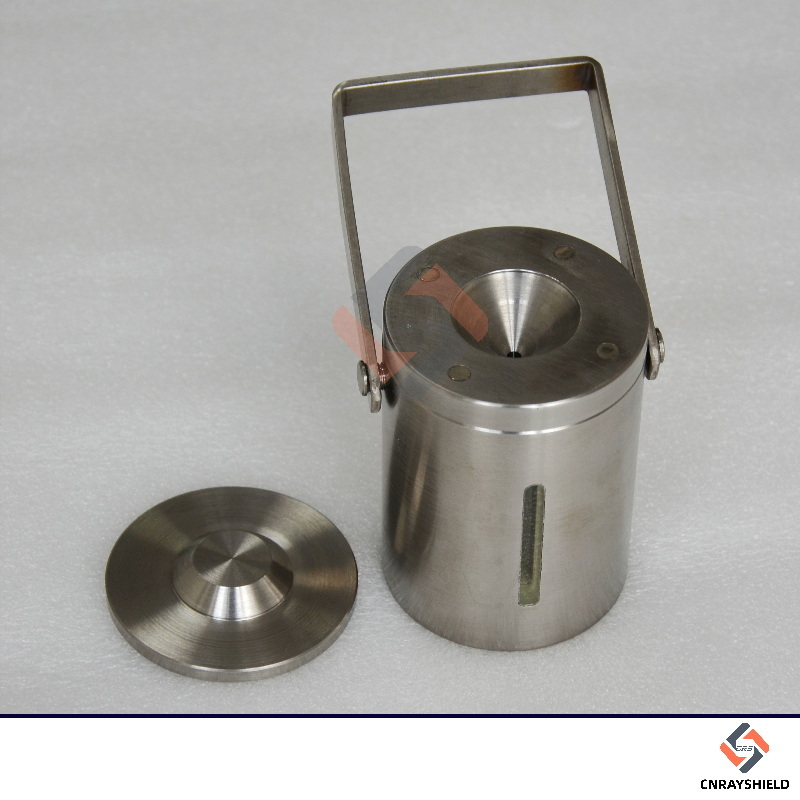

Type : TVS-605
Magnetic cap with lead galss view
Dimensions: OD73mm x 117mm H
Inner diameter 32mm , Inner high 75mm
Lead Equivalency: 20mm Pb
Lead glass : 6x50mm
Option: Lead glass can be removed
Grade | WNiFe,WNiCu |
Purity | W:89-99% |
Density | 18.89g/cm3 |
Dimensions | OD73mm x 117mmH |
Inner Diameter | 32mm |
Inner High | 75mm |
Lead Glass | 6x50mm |
Lead Equivalency | 20mmPb |
Surface | Polished,Oxide,Plating,Brushing,Chemical Cleaning |
Standard | ASTM B 777,ASTM T-21014,GB |
