Double ventilation fume hood-JX-HS04TFG

Double ventilation fume hood-JX-HS04TFG

40mmpb on the calibrator chamber, 50mmpb on the radioactive isotops lifting device (can be lifted and self-locked);

The fume hood is equipped with lighting, sterilizing device, ventilation device, power supply device, power supply 50HZ/20A/220V with safety protection, and external centralized safety voltage control adjustment panel;

The inside and outside of the fume hood are SUS304 brushed stainless steel plate finishes (the front panel of the liner is designed for the doctor easy operation

The lead brick protection of the fume hood is designed with four-sided dovetail groove, and the protection effect is excellent.

The lower part of the fume hood is made of the national standard thickened square steel welded load-bearing skeleton and sprayed with anti-rust paint. The upper part is assembled with national standard thick steel plate laser numerical control cutting and welding and sprayed with anti-rust paint.

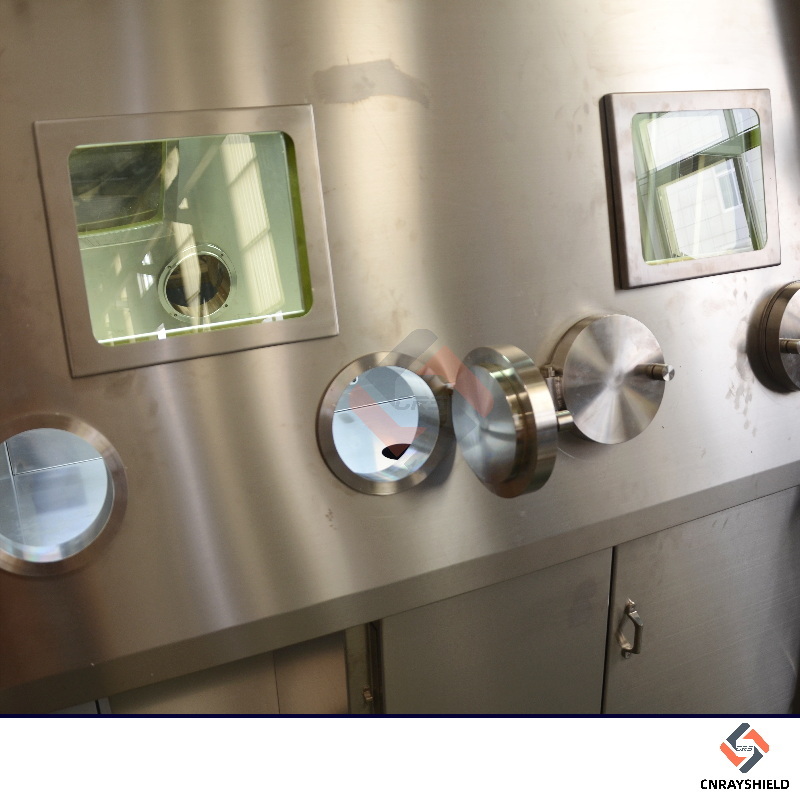

The front of the cabinet is provided with a lead glass observation window (length 260mm × width 300mm) that is equivalent to the protection of the cabinet; The front side is provided with an operation hole (φ150mm), the operation hole protection cover has the same level of lead protection as the cabinet body, and the ergonomic opening handle device is installed on the protection cover;

There are windows for transportation on both sides of the cabinet (high 530mm×width 420mm), and the same protection level door as the cabinet is provided. The door is installed on the protective door, and the cabinet and window door are overlapped to ensure the operation process. There will be no radiation leakage accidents;

The calibrator reading platform is suspended from the upper right (or middle) of the outside of the cabinet for easy observation by the operator.

Product Parameters
